Create multiple drawings (dwg files) in Revit

Modified: 28 Apr. 2024 Stabicad
Not version-specific
Stabicad
Issue:
How to export multiple dwg files from Revit.

Solution:
  1. Open a Revit model
  2. Go to the Revit button.

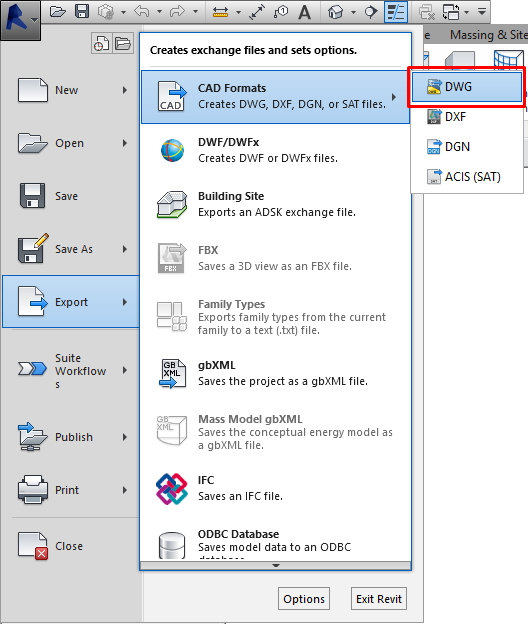

  3. Click Export -> CAD Formats -> DWG​
Door gebruiker toegevoegde afbeelding
  1. Select behind 'Export': <In-session view/sheet set>
Door gebruiker toegevoegde afbeelding

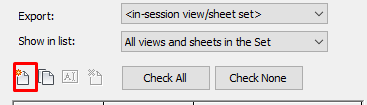

  1. Click 'create new'
Door gebruiker toegevoegde afbeelding
  1. Select the views you want to export and click next. The selected views will now be saved as separate dwg files.
