Export a user-defined property set

After creating the TXT file that contains the property set, you can export it.

To export the file:

Launch the Revit application and open a model.
In the Revit ribbon, select Trimble Connect and then select Start Collaboration.
Select a project in the Trimble Connect for Revit section.

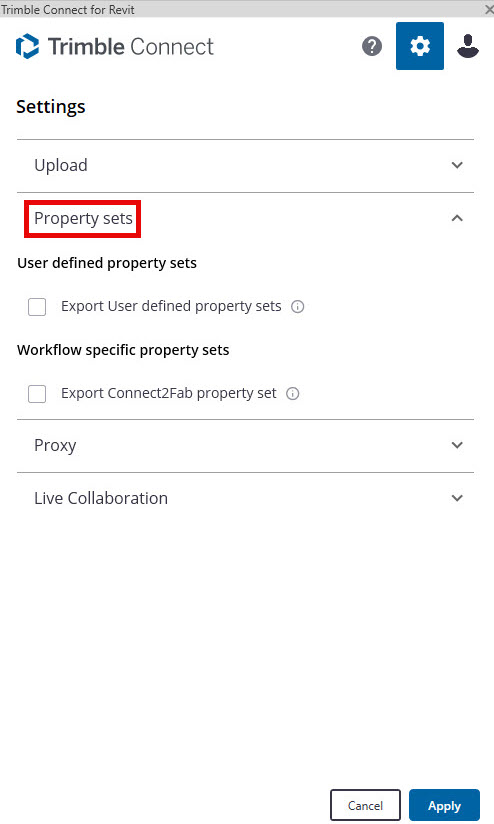

Select the settings icon (gear icon).
Expand the Property Sets menu.
To export user defined property sets, select Export User defined property sets in the User defined property sets section.
Select the search icon in the User defined property set field and select the required property set TXT file.
To export a Connect2Fab property set, select Export Connect2Fab property set in the Workflow specific property sets section.
Select Apply.
Select Publish.
