conversion polylines and model lines in a Stabibase system type

Problem:
You have a single-line representation of a duct or pipe (model line or polyline) and need to convert it into a Stabibase system type.

Solution:

1. Open your drawing and go to the Draw tab in the discipline.

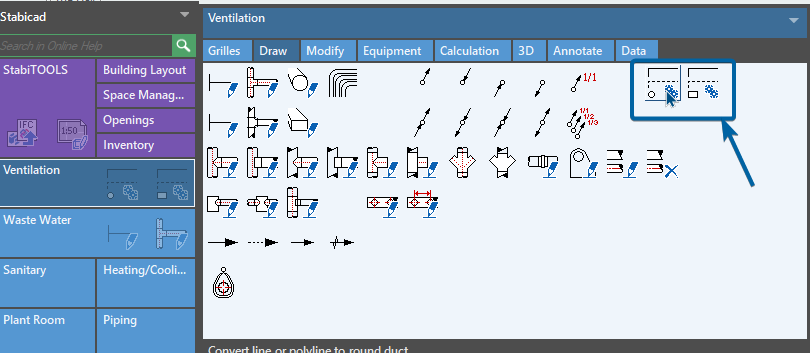

2. Click the “Convert Line or Polyline to Round Duct” (or “Convert Line or Polyline to Rectangular Duct”) button.
3. Select the model line or polyline you wish to convert.
4. In the dialog, choose the correct delivery program (verify language, standards, and layer settings).
5. Confirm to complete the conversion – the line(s) will now be a Stabibase duct system type.

If you have any questions about this article, please contact the helpdesk directly.
