Export and Import a schedule in Revit

Modified: 28 Apr 2024 Stabicad
Not version-specific
Stabicad
Issue
How do I export and import a schedule in Revit.

Solution:
The steps for exporting the schedule are as follows:
  1. Open the Revit file from which you want to export the schedule.

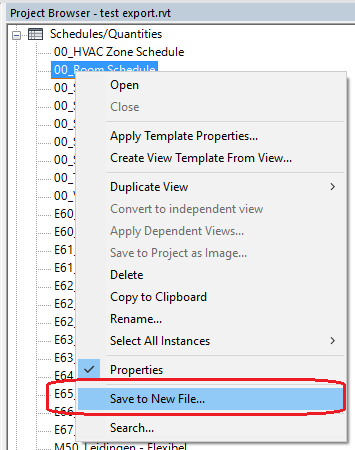

  2. Go to the schedules -> click on the desired schedule with your right mousebutton. Select Save to new file...
  3. Select the desired path/file and save the schedule.

Eport schedule

The steps for importing the schedule are as follows:
  1. Open the Revitfile to which you want to import the schedule.

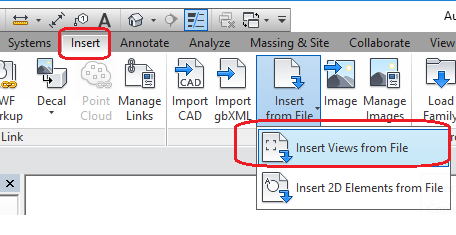

  2. Go in the ribbon to Insert
  3. Click on Insert from file -> Insert View from file
Import schedule
  1. Select your schedule or view and import.
  2. Now you will get another pop-up. Select here your views en click on OK.
