How to copy a system to a new level

Modified: 28 Apr 2024 Stabicad
Not version-specific
Stabicad
Issue:
Is it possible to copy a system to a higher or lower level?

For example:
How to copy a ventilation system from level 0 to level 1 & 2.

Solution:

Steps:
  1. Select the system you want to copy. Hover the mouse over the system and press the tab key to select the entire system.
  2. Use Ctrl+C to copy the system to the clipboard.

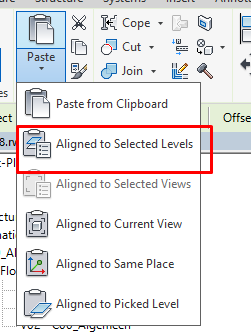

  3. Click Modify -> Paste -> Aligned to selected levels to paste the system to another floor.
Door gebruiker toegevoegde afbeelding
  1. Then select the desired level.
Door gebruiker toegevoegde afbeelding


For copying Electrical installations to other levels see: Stabitip - Copy a distribution panel with circuits and consumers
