How to place and edit an image on Cadplatform

Problem:
How do I place and edit a picture in CADplatform?

Solution:
The steps to attach an image are as follows:

1. Open your drawing.

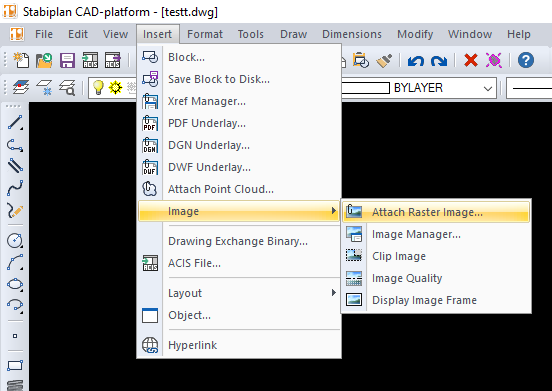

2. Go to Insert > Image > Attach Raster Image... and select your image.

3. Tickmark off  "Specify on screen" under Insertion point and Size in the screen you get afterwards.
4. Click on OK to place the image.

The steps to edit an attached image are as follows:

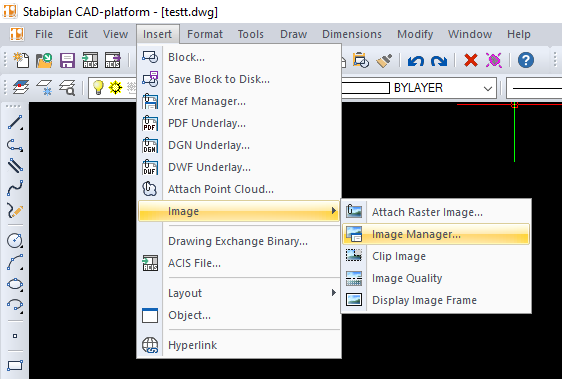

1. Go to Insert > Image > Image Manager...

2. Image manager will open.

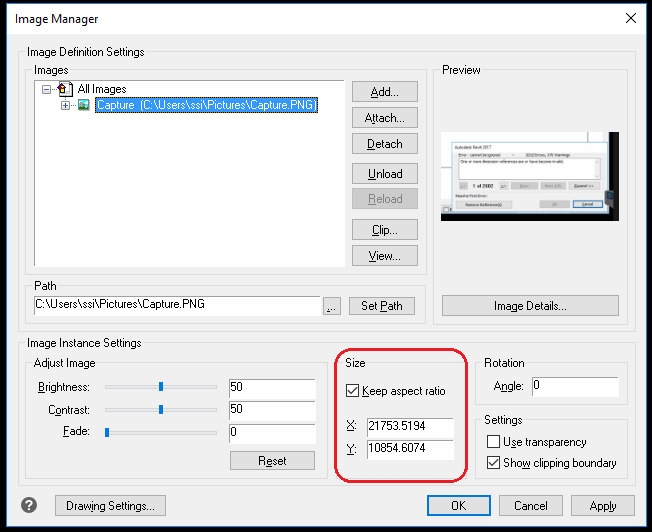

3. You can edit Image Instance Settings, Size and Rotation.
4. When you want Resize an image for example, select the image in Images field by clicking once on it (as depicted below).
5. Under size you can fill in the size of the image you want.
