Show white hatch white on printed paper

Problem:

In Autocad the hatch is shown white. But how can I also print the hatch white.

Solution:

Solution 1: Use True color 255,255,255

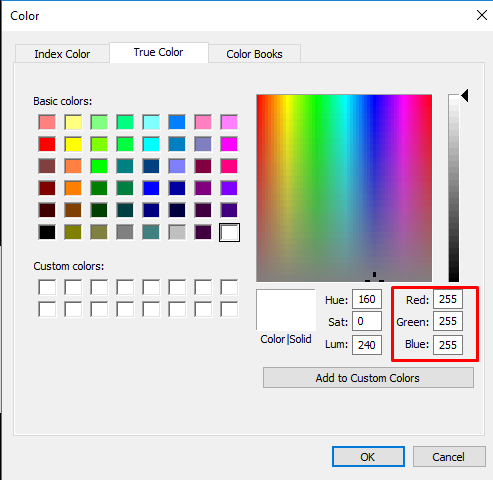

Printscreen CAD-platform:

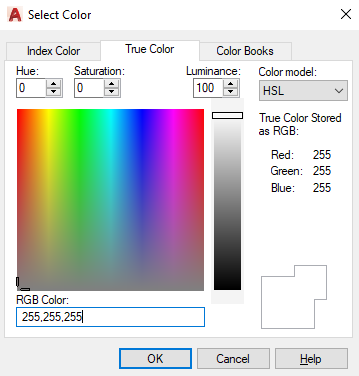

Printscreen AutoCAD:


Solution 2: Edit the ctb file.

1. To print the hatch in white. Select the concerning hatches.

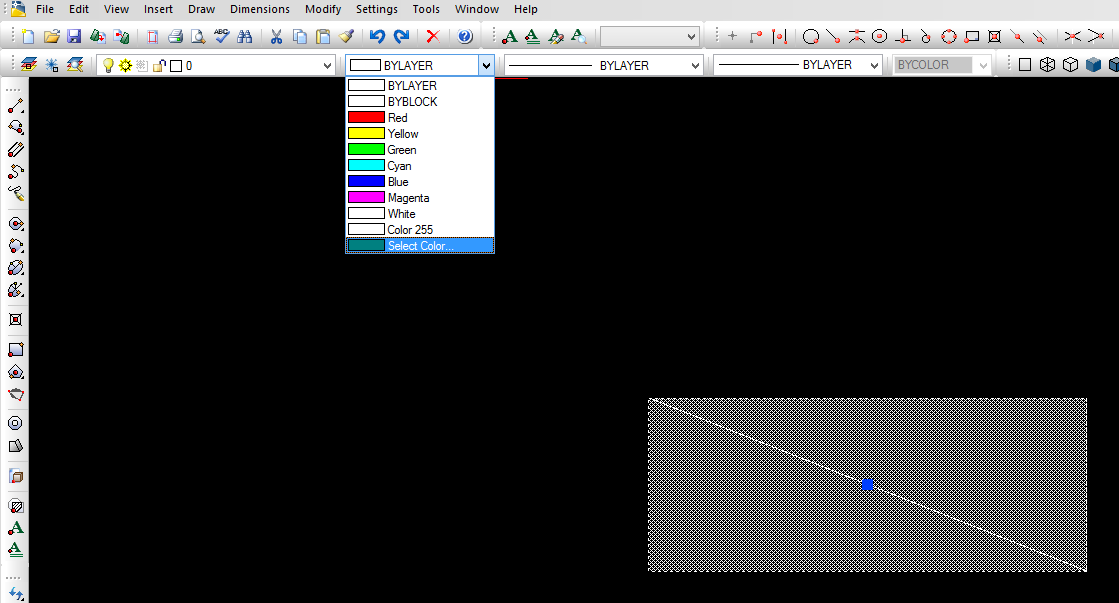

2. Click on Color control  and then on Select Color.. (as depicted in the picture below)

3. Type below in the pop-up number 255 and click on OK.

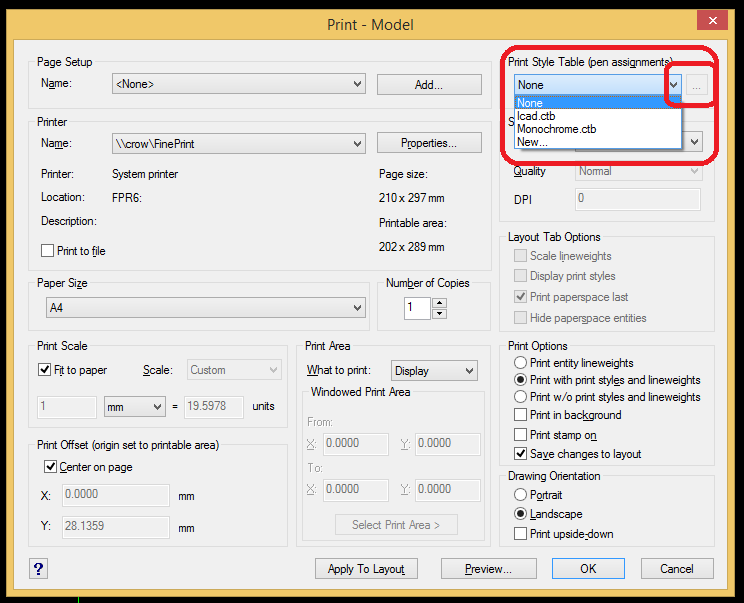

4. Now you have to setup your Print Style Table. This can be done in the settings while printing. To do so, type PLOT or CTRL+P.​

​

5. Select the style you need and click afterwards on the icon with ... (three dots) as you can see in the picture above.

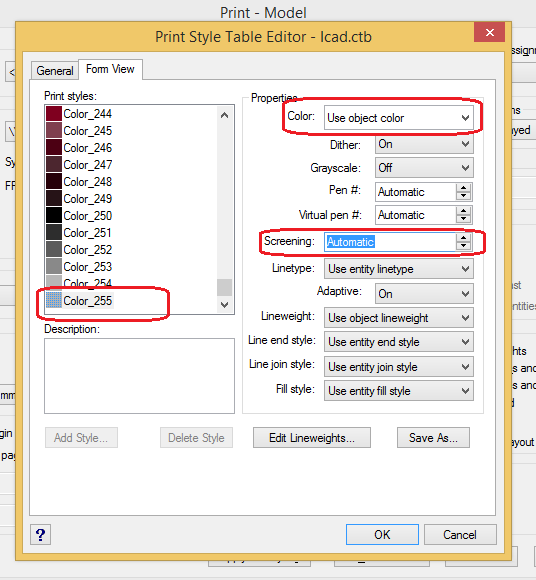

6. Select in the following pop-up,  color_255, in the properties select use object color and set Screening on 0. Click on OK.​



Now you can print your drawing. The hatches wil stay whit when you print the drawings.
